Electrical substations for renewable energy

Brunstock’s electrical substations are ideal for a range of renewable energy distribution applications. The modular nature of our solutions means the switchgear can be built and assembled in a switchroom building in one of the factories prior to delivery to the rep. A Brunstock representative typically installs LV panels, according to the needs and standards of their local region, and finalises the kiosk, step-up or collector substation before releasing it to their customer.

Pre-commissioning and modular buildings reduce the site workload and overall project execution time. Brunstock only works with reps that have a proven track record on solar, BESS and wind energy farms, supplying turnkey ehouses and kiosks. For major renewable energy projects, where multiple power distribution solutions are required, Brunstock can work with the rep on a packaged solution for different distribution voltage levels.

Renewables | Utilities | Infrastructure | Mining | Oil and Gas

Step-up transformer substations

Step-up transformer skid stations

SF6-free RMUs

SF6-free primary GIS

MV switchgear stations

Transformers

Energy storage

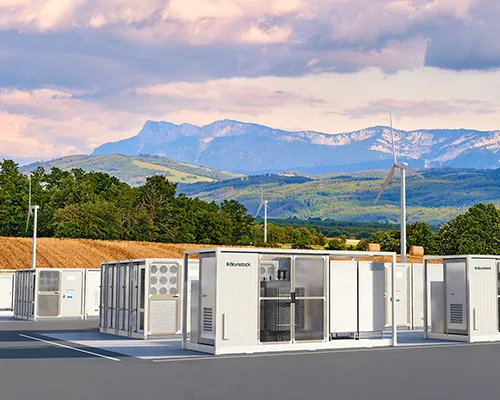

A commercial storage BESS outside a factory in Switzerland

Switchgear close up view medium voltage inside an electrical enclosure

Electrical substation for renewable energy photo showing components like ehouse and switchyard.

Energy storage

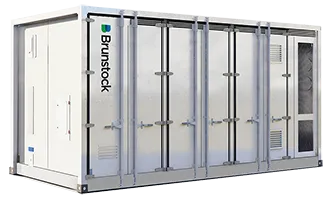

It goes without saying that BESS are one of the powerhouses behind renewable energy projects all over the world. Taking energy produced by renewable sources, like the sun or wind, can only go so far without storing that energy for later use. Brunstock BESS includes a range of scalable, modular BESS options from the 261 kWh Symm 261 to our much bigger 5 MWh DC block. Find out more about Brunstock BESS

Substation kiosks (electrical substation enclosures)

Substation kiosks are medium sized electrical enclosures that are pivotal in renewable energy projects. These compact, prefabricated structures house crucial electrical substation components, such as switchgear, and protect them from environmental factors. In renewable energy projects, such as solar or wind farms, electrical substation kiosks are used to step up the electricity generated by the renewable energy sources to medium voltage for local distribution. Find out more about Brunstock substations

Switchgear and ring main units (RMUs)

Switchgear and RMUs are essential for managing and protecting the electrical infrastructure in renewable energy projects. Switchgear includes a combination of electrical disconnect switches, fuses, and circuit breakers that control, protect, and isolate electrical equipment. In renewable energy setups, switchgear ensures the safe and efficient operation of the electrical substation system by preventing faults and enabling quick isolation of faulty sections and minimising downtime. RMUs, which are a type of compact, enclosed switchgear, play a similar role but are particularly valued for their reliability and ability to handle medium-voltage distribution. They are often used in wind and solar farms, as well as in battery energy storage systems, to manage load balancing and fault isolation, ensuring a stable power supply. Find out more about Brunstock clean-air switchgear

Power transformers for electrical substations

Power transformers are indispensable in renewable energy projects as they facilitate the transmission of electricity over long distances. Renewable energy sources, such as wind turbines and solar panels, often generate electricity at a lower voltage. Power transformers step up this voltage to a higher level for efficient transmission to the grid. Once the electricity reaches the distribution point, other transformers step it down to a lower voltage for safe use by consumers. This process ensures minimal energy loss and maximum efficiency, making power transformers a critical component in the renewable energy supply chain. Find out more about Brunstock transformers

In summary, Brunstock’s BESS, substation kiosks, switchgear, RMUs, and power transformers are perfect for the successful implementation and operation of renewable energy projects. They ensure the safe, efficient, and reliable distribution of electricity generated from renewable sources, supporting the global shift towards sustainable energy.

Contact your local Brunstock rep, today!
