Brunstock’s step-up skid stations contain power transformers and switchgear for battery energy storage plants. These modular substations convert low-voltage AC power generated by the power conversion system (PCS) into medium-voltage AC power and feed it into the power grid.
This step-up transformer skid station integrates a ring main unit, a transformer, a power converter system and an auxiliary power supply. Installed on a steel skid, this unit has a strong foundation and can withstand outdoor elements. This highly integrated power transformer and voltage conversion solution is ideal for energy storage plants in medium-voltage grid-tied applications.
The modular design offers speed and commercial competitiveness while Brunstock also has the flexibility to cater for specific project needs. It is available with a central PCS or string layout.
Features
Intelligent
- The station detects the operating status of its ring main unit, transformer and PCS in real time
- The station displays power parameters online, with accurate current and voltage detection
- Remote access to the running information of the complete step-up skid station
- Remote control of the circuit breaker for the PCS and ring main unit (RMU)
Manufacture
- Internal equipment is selected and installed
- The 20-foot container size of the skid structure facilitates easy transportation and installation
Reliable
- Solid and reliable structure design
- IP54 rating of medium-voltage RMU room and PCS
Fast
- Fast deployment can be implemented
- Only PCS needs to be routed in and medium-voltage cables need to be routed out on site
Brunstock step-up skid station illustrations
Components
Application

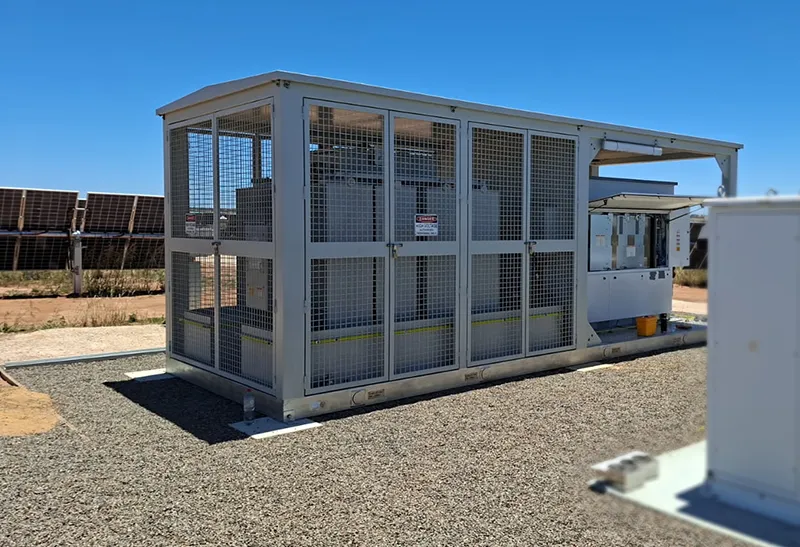

Network application of Brunstock’s step-up skid station for BESS
Diagram example of step-up skid station with central PCS

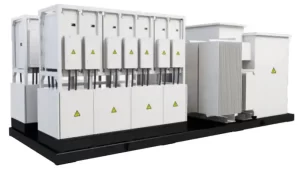

Diagram example of step-up skid station with string PCS

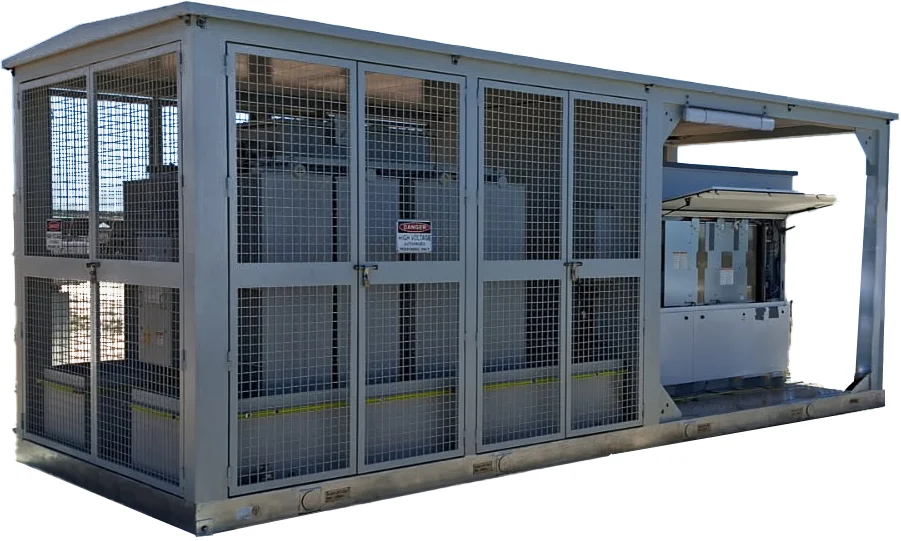

Appearance
Exterior dimensions
For ease of transportation, the station has the same dimensions as a 20-foot container: W 6,058mm x H 2,896mm x D 2,438mm.
Internal composition
Technical data
Transformer technical data
Type | 3,000kVA | 5,000kVA |
---|---|---|
Transformer type | Oil transformer | Oil transformer |
Rated power | 3,000kVA @ 40C (see note 1) | 5,000kVA @ 40C (see note 1) |
Max. power | 3,400 kVA @ 30C | 5,500 kVA @ 30C |
Vector group | Dy11 | Dy11y11 |
LV/MV voltage | 0.8kV / 20-35kV | 0.8kV / 0.8 kV / 20-35kV (see note 2) |
Maximum input current at nominal voltage | 2,500 A x 1 | 2,500 A x 2 |
Frequency | 50Hz | 50Hz |
Tapping on HV | 0, ±2x2.5% | 0, ±2x2.5% |
Efficiency | ≥99% | ≥99% |
Cooling type | ONAN (Oil Natural Air Natural) | ONAN (Oil Natural Air Natural) |
Impedance | 6.5% (±10%) | 6.5% (±10%) |
Oil type | Mineral oil (PCB free) | Mineral oil (PCB free) |
Winding material | AI/AI | AI/AI |
Insulation class | A | A |
MV switchgear technical data
Type | 3,000kVA | 5,000kVA |
---|---|---|
Insulation type | Gas SF6-free | |
Rated voltage | 24-36kV (see note 2) | 24-36kV (see note 2) |
Rated current | 630A | 630A |
Internal arcing fault | IAC AFLR 31.5 kA/1s | IAC AFLR 31.5 kA/1s |
Qty of feeder | 2-3 feeders | 2-3 feeders |
MV surge arrester for VCB | Optional (see note 3) | Optional (see note 3) |
PCS technical data
Type | 3,000kVA | 5,000kVA |
---|---|---|
DC side | 800V-1500V, 1935A x 2 | 1300V-1500V, 2154A x 2, 2 inputs |
AC side | 3000kVA/690V | 5000kVA/900V |
Protection technical data
AC input protection | Circuit breaker | Circuit breaker |
---|---|---|
DC side | 800V-1500V, 1935A x 2 | 1300V-1500V, 2154A x 2, 2 inputs |
Transformer protection | Oil-temperature, oil-level, oil-pressure | Oil-temperature, oil-level, oil-pressure |
Relay protection | 50/51, 50N/51N | 50/51, 50N/51N |
LV overvoltage protection | AC Type II (optional: AC Type I +II) | AC Type II (optional: AC Type I +II) |
Anti-rodent protection | C5-Medium | C5-Medium |
General technical data
Type | 3,000kVA | 5,000kVA |
---|---|---|
Dimensions (WxHxD) | 6,058mm x 2,896mm x 2,438mm | 6,058mm x 2,896mm x 2,438mm |
Approximate weight | ≤5T | ≤22T |
Operating temperature range | -25C~60C (see note 4) | -25C~60C (see note 4) |
Auxiliary power supply | 100kVA/400V | 100kVA/400V |
2kVA UPS | Optional (see note 3) | Optional (see note 3) |
Degree of protection | IP54 | IP54 |
Allowable relative humidity range (non-condensing) | 0-95% | 0-95% |
Operating altitude | 1,000m (see note 5) standard, greater than 1,000m optional extra | 1,000m (see note 5) standard, greater than 1,000m optional extra |
Communication | RS485, Ethernet, Optical fiber | RS485, Ethernet, Optical fiber |
Compliance | IEC 60076, IEC 62271-200, IEC 62771-202, IEC 61439-1, EN 50588-1 | IEC 60076, IEC 62271-200, IEC 62771-202, IEC 61439-1, EN 50588-1 |
Notes:
1. For more details on AC power, please refer to the de-rating curve
2. Rated output voltage from 20 kV to 36 kV, more available upon request
3. Additional features are available, which the product doesn’t contain, by default, please discuss with your Brunstock rep
4. When ambient temperature ≥55C, an extension roof shall be equipped for the station on site by the end user
5. For higher operating altitude, please consult with Brunstock
Product design
A Brunstock step-up transformer station consists of three parts: PCS, transformer room, and medium-voltage room. This is mounted on a metal pad (a skid) or inside an enclosure that is the same size as a standard shipping container.
PCS
The PCS cabinet, located in the container or on the skid, is used to converge the DC power to AC power and feed it into the MV grid. It can be a central or string type of PCS, according to customer specifications. The size of each PCS influences the overall layout of
the container or skid station.
Medium voltage room

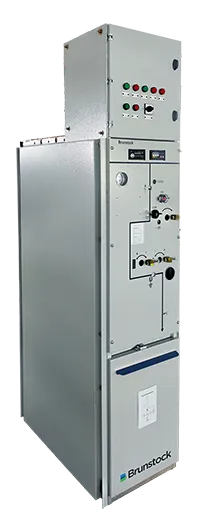

The medium voltage room contains a Brunstock Gas-insulated Secondary ring main unit and a circuit breaker. This transformer
protection is mainly achieved through the relay protection device. When the transformer is overloaded or short-circuited, the circuit breaker can be reliably disconnected. When the transformer experiences an overtemperature fault, heavy gas fault, or oil over pressure fault, the circuit breaker trips and the system is quickly protected.
View technical details of BGS-12
View technical details of BGS-40.5
The medium voltage room also contains a communication box and a power distribution cabinet.
Transformer room
The transformer room mainly includes a transformer that is used to convert the low-voltage AC power into medium-voltage AC power.
The transformer integrates accessories such as a pressure relief valve, tap changer, oil level indicator, pressure gauge, oil temperature
indicator, oil filling valve and oil drain valve.
The structure of 4,600kVA is shown in the figure as an example. The oil-cooled transformer adopts natural heat dissipation, and the top is not covered.
Step-up technical data
Item | Type | 4,600/33, 3 windings, oil-immersed |
---|---|---|
Rated output kVA | | 4,600 |
Vector group | | Dy11y11 |
Type of cooling | | ONAN |
Rated voltage kV | HV | 33 |
Rated voltage kV | LV | 0.8 |
Rated voltage | Voltage variation | ±10% |
Rated current A | HV | 154 |
Rated current A | LV1 | 3,248 |
Rated current A | LV2 | 3,248 |
Number of phases | | 3 |
Rated frequency Hz | | 50 |
Frequency variation % | | ±5 |
Conductor materials | HV | Aluminium |
Conductor materials | LV | Aluminium |
Tap changer | LV | Off circuit |
Tap changer | HV | ±2x2.5% |
Insulation level kV | HV | LI 170/AC 70 |
Insulation level kV | LV | AC 5 |
Notes:
1. For more transformer ratings, please consult your Brunstock rep
Thermal design
Considering different working conditions and requirements for each compartment and component, Brunstock’s step-up stations adopt
different cooling methods for different compartments:
- The ingress protection level of the PCS cabinet is high, so it uses forced-air cooling to take away the heat inside the PCS cabinet
- The MV transformer adopts ONAN mode
- The MV switchgear and the communication & power distribution cabinet have natural cooling via vents, air intake from the bottom and air extraction by the fan, above
The science-based design of our step-up skid structure ensures cooling efficiency and effectively extends the service life of internal components and the entire station.
Flow field analysis of step-up station
Temperature field analysis of step-up station
Foundation
