Medium voltage (24kV) gas insulated switchgear

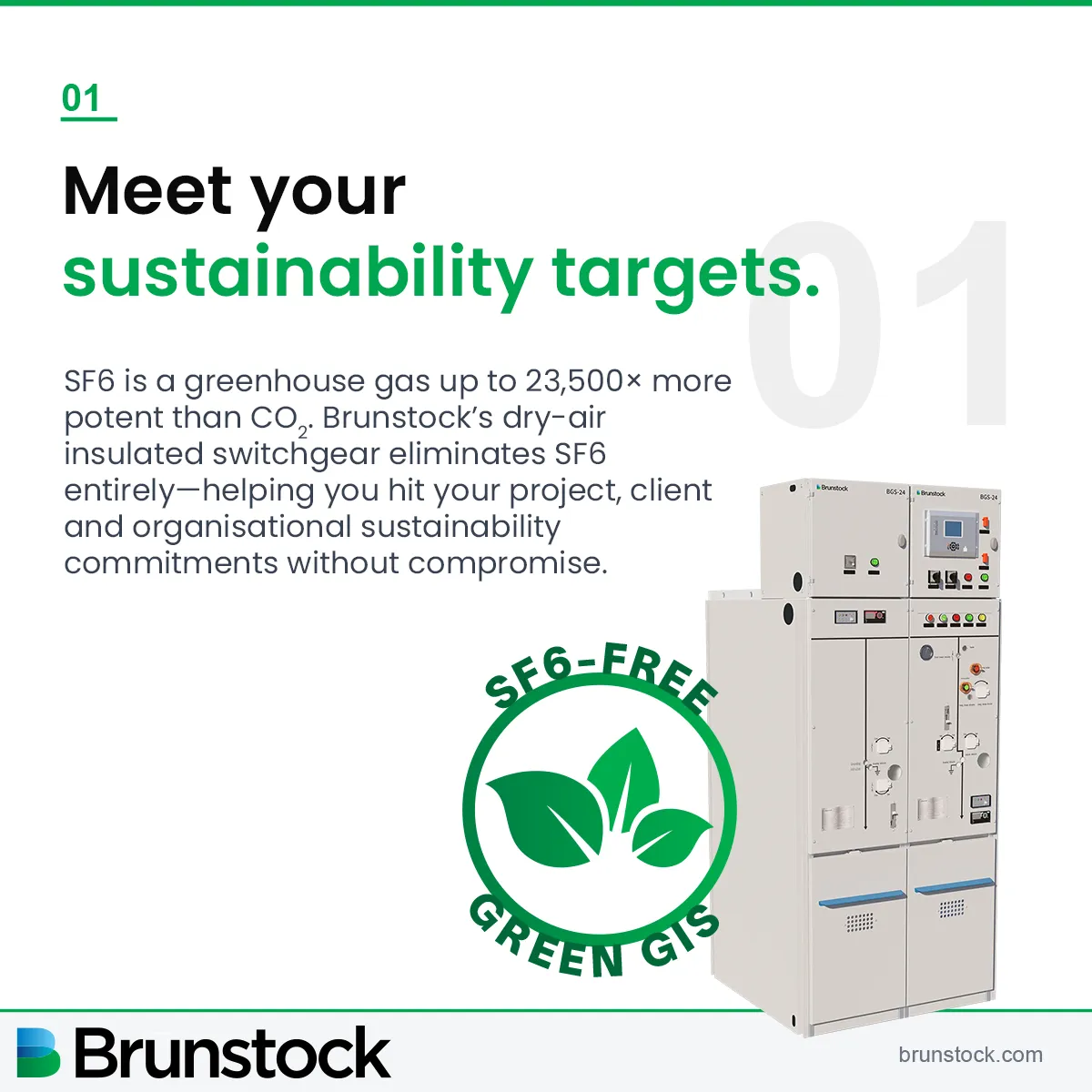

BGS-24 is a 24kV ring main unit (RMU) or secondary gas-insulated switchgear. It has the following attributes:
- Type tested according to IEC62271-100,
IEC62271-200 - Metal enclosed, partition class PM
- Loss of service continuity category: LSC2B
- Protection index: Gas tank IP67, enclosure
IP4X - Mechanical endurance: Circuit breaker 10,000 (M2), three-position disconnector/earthing switch 5000 (M2)
Brunstock represents power distribution systems and solutions for the global IEC market. The BGS-24 (Brunstock Gas-insulated Secondary switchgear rated up to 24kV), adopts vacuum switching and SF6 sealing technology with its main circuit/high-voltage components in the gas tank. It can operate under harsh environmental conditions, such as dust, humidity, saline air and even at high altitude.

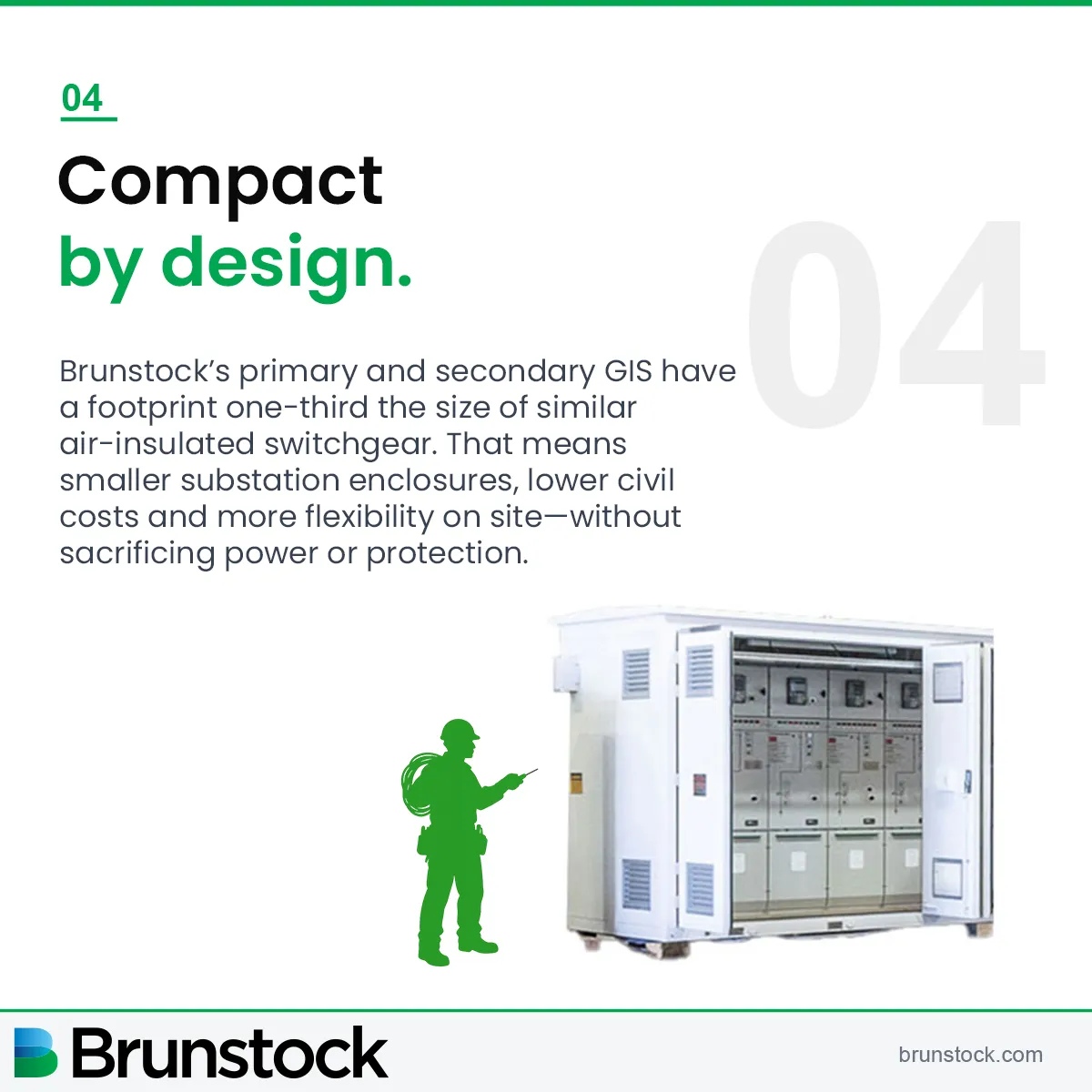

The product has the standardised unit width of 450mm and a depth of 800mm. Its compact footprint makes it a flexible

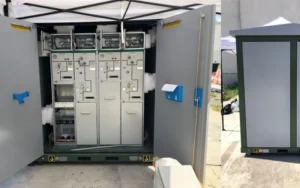

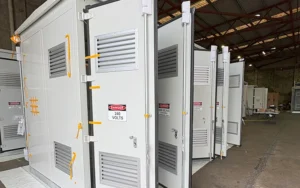

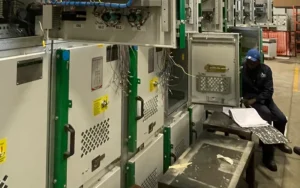

solution which can be widely applied. You will find it in all kinds of kiosks in renewable wind/solar farms, utility, airports
and railways.
Benefits of BGS-24
- Cost efficient
- Maintenance free
- Safe and reliable
- Compact
- If offers operational continuity
- Fast delivery
Gas Insulated Switchgear features
Size
- Width: 450mm
- Depth: 880mm
- Height: 2200mm
Performance
- Type tested according to IEC62271-100, IEC62271-200
- Metal enclosed, partition class PM
- Loss of service continuity category: LSC2B
- Protection index: Gas tank IP67, enclosure IP4X
- Mechanical endurance: Circuit breaker 10,000 (M2), three-position disconnector/earthing switch 5000 (M2)
International Standards Compliance with IEC
- 62271-100
- 62271-103
- 62271-105
- 62271-200
Technical specifications of BGS-24
Application of BGS-24
Renewable energy plants, utilities, infrastructure, oil and gas and mining facilities can all make use of this 24kV switchgear. Get in contact with your local Brunstock rep for more information and customisation.
