Product parameters
| Product Model | BRUN-BESS-5MWH-0.5C | BRUN-BESS-5MWH-0.25C |
| DC-side parameters | ||
| Cell type | LFP 3.2V/314Ah | LFP 3.2V/314Ah |
| Capacity | 5.016MWh | 5.016MWh |
| DC voltage range | 1081.6V-1497.6V | 1081.6V-1497.6V |
| System configuration | 416S12P | 416S12P |
|
Thermal management system |
Smart liquid cooling/ heating for battery system |
Smart liquid cooling/ heating for battery system |
|
Fire detection and alarm |
Fire alarm panel, heat and smoke detection, alarm bell and strobe |
Fire alarm panel, heat and smoke detection, alarm bell and strobe |
|
Fire suppression options |
Aerosol-based suppression system. Flooded fire protection systems. |
Aerosol-based suppression system. Flooded fire protection systems. |
| Round trip efficiency (RTE) | 94% | 94% |
| Noise at 1m distance | ≤75dB(A) | ≤75dB(A) |
| AC-side parameters | ||
| Nominal power | 1250kWx4 | 1250kWx2 |
| PCS nominal AC voltage | 690V | 690V |
| Current harmonic | <3% | <3% |
| Power factor | -1–+1 | -1–+1 |
| Transformer type | Oil-immersed transformer | Oil-immersed transformer |
| LV/MV voltage | 0.69kV/33kV | 0.69kV/33kV |
| System parameters | ||

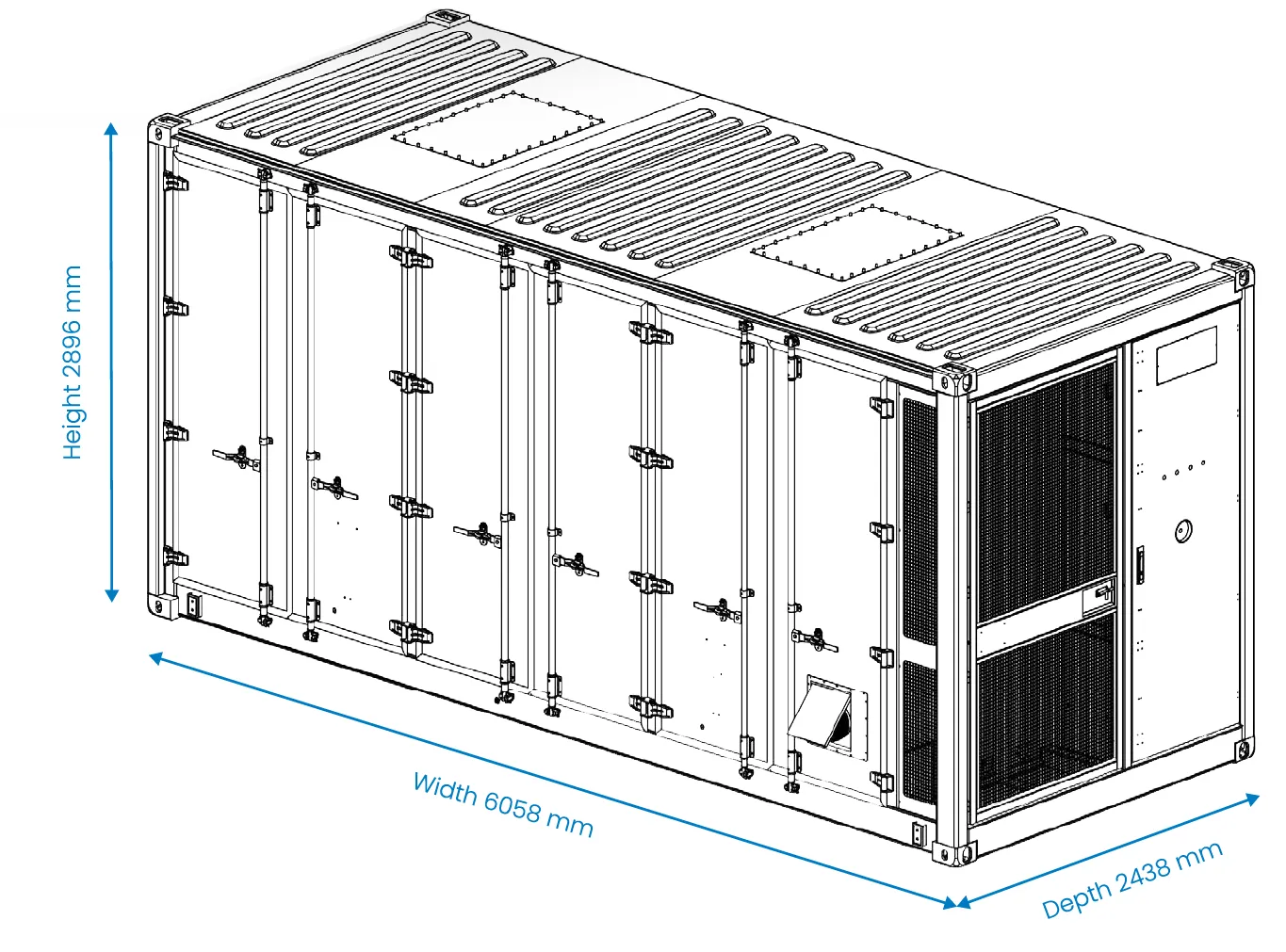

| Dimensions of battery compartment | 6058 x 2438 x 2896mm | 6058 x 2438 x 2896mm |
| Weight of battery compartment | 41t | 41t |
| Operating temperature range | -20°C~45°C | -20°C~45°C |
| Relative humidity | 0%–100% | 0%–100% |
| Ingress protection rating | Ip55 | Ip55 |
| Max. altitude | 5000m (>2000m derating) | 5000m (>2000m derating) |
| Communication protocol | Modbus TCP, IEC104, IEC61850 | Modbus TCP, IEC104, IEC61850 |
|
Certification |
IEC 62619, IEC 63056, IEC 61000, IEC 62477-1, IEC 62933-5-2, UN 3536, UN 38.3 |
IEC 62619, IEC 63056, IEC 61000, IEC |
| MV side system efficiency | ≥86% | ≥86% |
Notes:
- RTE: The value is for 1 cycle per day at 25°C ambient temperature and 97% DOD, at the end of the first year.
- MV side system efficiency: This value is the efficiency of the discharged power/charged power measured on the MV side after the system has completed a full discharge at an ambient temperature of 25°C.
