(BMS) Battery Management System

Brunstock’s battery management system has a three-tier architecture (BAMS, BCMU and BMU). This gives the battery system flexibility, insulation, better interference resistance and more than one communication protocol. Chip-level equalisation technology ensures longer battery life, safety and working efficiency.

The 32-bit high performing MCP (Main Control Processor) uses real-time information to provide multi-dimensional diagnostics and offers multi-tier BMS safety technology, which support high-precision data.

Functions

  • Data collection and monitoring for total voltage, current, cell voltage and temperature
  • Battery system fault detection and protection
  • Support battery system insulation detection
  • SOC, SOH, SOP and SOE estimation for the battery system
  • More than one communications protocol, eg. TCP/IP, CAN, RS485 and USB
  • Support data storage, support local storage and power-down protection of system operating data
  • Battery system heat management prolongs the pack’s usable life
  • Chip-level equalisaation technology
  • Support Ethernet, CAN and Bootloader updates

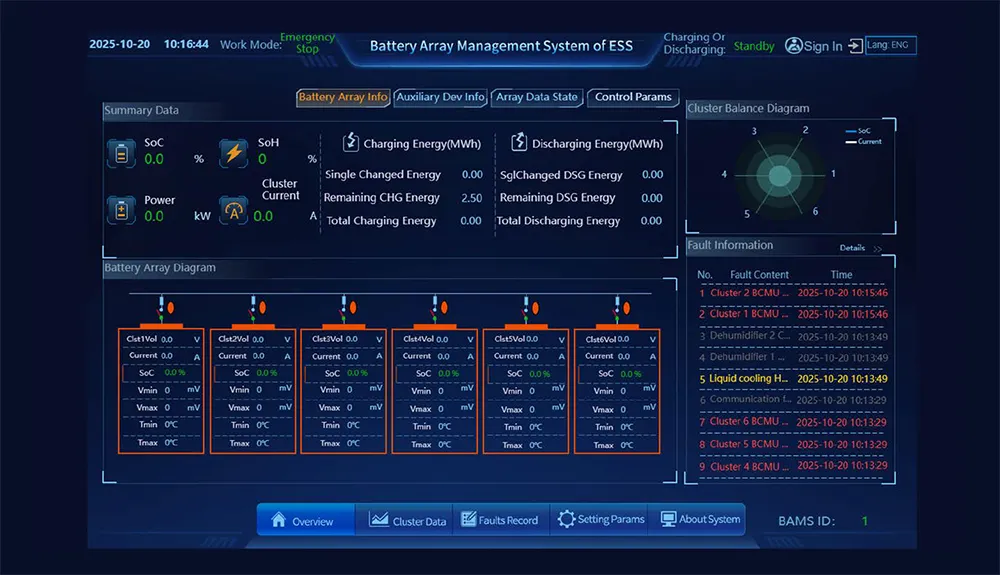

  • Data monitoring and data display, An at least 10″ color monitor for display purposes
  • Battery system data and parameter settings
  • Event and fault recording with at least 30-days recorded. It also supports expandable remote data monitoring

Product parameters

Product Model BAMS BCMU BMU-16S BMU-54S
Power supply
Rated voltage 24V 24V 24V 24V
Power source range DC9V-32V DC9V-32V DC9V-32V DC9V-32V
Rated power consumption 10W SW 2W 2W
Analog data acquisition
Voltage data accuracy   ±1%FS ±3mV ±3mV
Current data accuracy   ±0.2%
Temperature data accuracy   ±1°C ±1°C ±1°C
Voltage data acquisition channel number and range   2 2 2
Current data acquisition channel number & range   1
Temperature data acquisition channel number & range 4 16 54
Digital input/output
Digital input 4 8 1 1
Digital output 6 8 1 1
Communications protocol
CAN 2 3 1 1
Ethernet 3
RS485 3 1
Others
Insulation resistance data acquisition range   0-10 M
Insulation resistant data accuracy   15%
Digital input 4 8
